LCR1000 Impact Mill ProjectA verified Shanxi project used an LCR1000 superfine impact mill to process kaolin feed below 10 mm into a reported 325 mesh product with oversize below 0.005 at 1,000 kg/h.
The project required kaolin feed below 10 mm to reach a reported 325 mesh product with oversize below 0.005 at 1,000 kg/h.
A comparable project should test mineral hardness, moisture, feed distribution, whiteness requirements, acceptable wear contamination and usable product yield.
The reported values document one completed reference. A new process should be selected from representative testing because mineral source, moisture, hardness, feed distribution and required product cut can change the result.
Review mineral composition, hardness, moisture, feed size, bulk density and contamination limits.
Verify achievable distribution, oversize control, capacity trend, usable yield and product recovery.
Use the test result to select mill size, classifier arrangement, wear protection and collection system.
A comparable kaolin project can be evaluated around an LCR1000 impact mill with metered feeding, integrated classification and efficient powder collection.
These values come from the authorized project record and describe this reference only. They are not a universal performance guarantee.
A new mineral should be tested before model selection because source variation, feed condition, operating settings and collection efficiency all affect capacity and particle size.

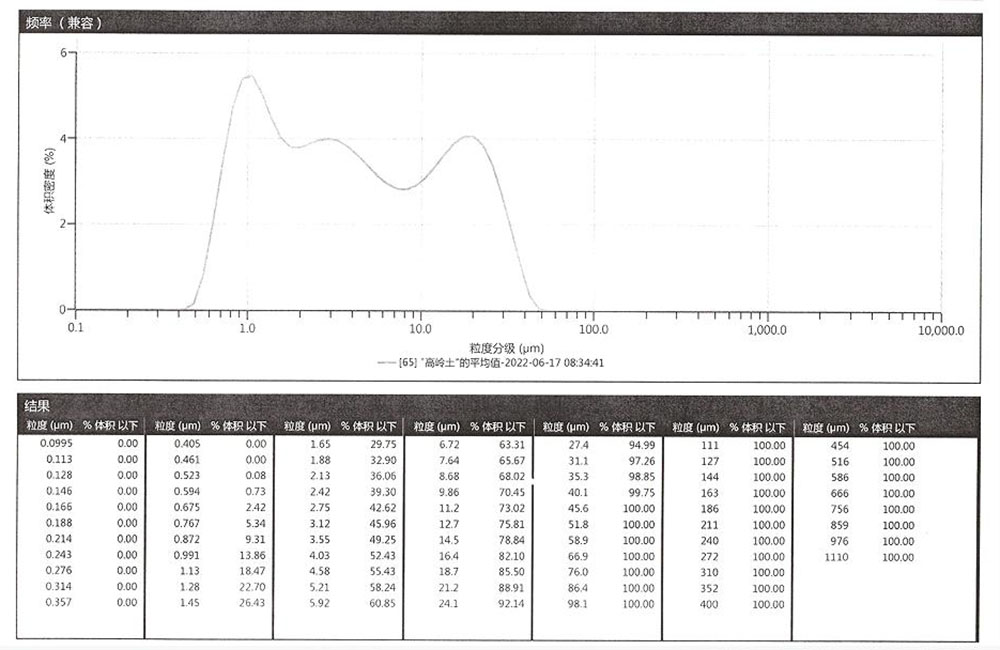

The original report is displayed as supplied. No replacement curve or reconstructed particle-size distribution has been created.
Review the Mills Powder impact mill range for fine grinding of kaolin and other soft-to-medium-hard mineral powders.
Send the feed size, target particle distribution and capacity for impact mill testing and scale-up review.
