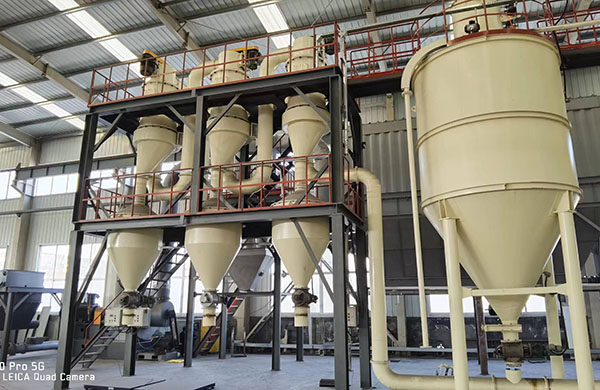

Dual AF200 Classification ProjectA verified Jilin project used two AF200 air classifiers to process dried kieselguhr feed with 325 mesh oversize at or below 8% into two reported products: 400 mesh at 99% and 800 mesh at 95%, at 2 t/h.
The project required dried kieselguhr feed with 325 mesh oversize at or below 8% to be separated into reported 400 mesh (99%) and 800 mesh (95%) products at 2 t/h.
A comparable classification project should verify feed moisture, bulk density, agglomeration, inlet distribution, required cut points and recovery for each product stream.
The reported values document one completed reference. A new process should be selected from representative testing because mineral source, moisture, hardness, feed distribution and required product cut can change the result.
Review mineral composition, hardness, moisture, feed size, bulk density and contamination limits.
Verify achievable distribution, oversize control, capacity trend, usable yield and product recovery.
Use the test result to select mill size, classifier arrangement, wear protection and collection system.
A comparable kieselguhr project can be evaluated around staged AF200 air classification with controlled feeding and separate collection for each qualified product.
These values come from the authorized project record and describe this reference only. They are not a universal performance guarantee.
A new mineral should be tested before model selection because source variation, feed condition, operating settings and collection efficiency all affect capacity and particle size.

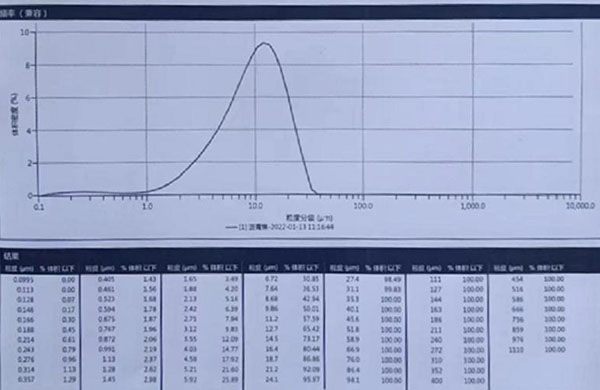

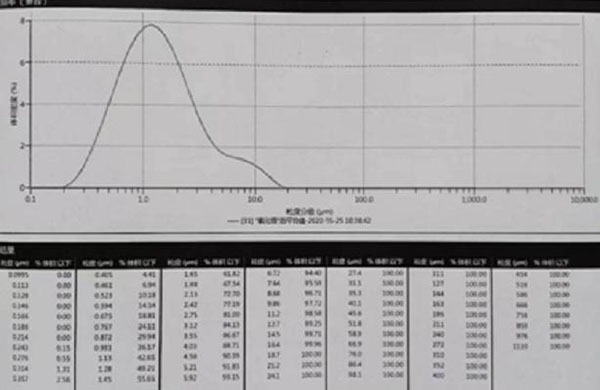

The original reports are displayed as supplied. No replacement curve or reconstructed particle-size distribution has been created.
Review the Mills Powder AF air classifier range for dry mineral classification and multi-product cut-point control.
Send the feed condition, required product cuts and capacity for classifier testing and system selection.
