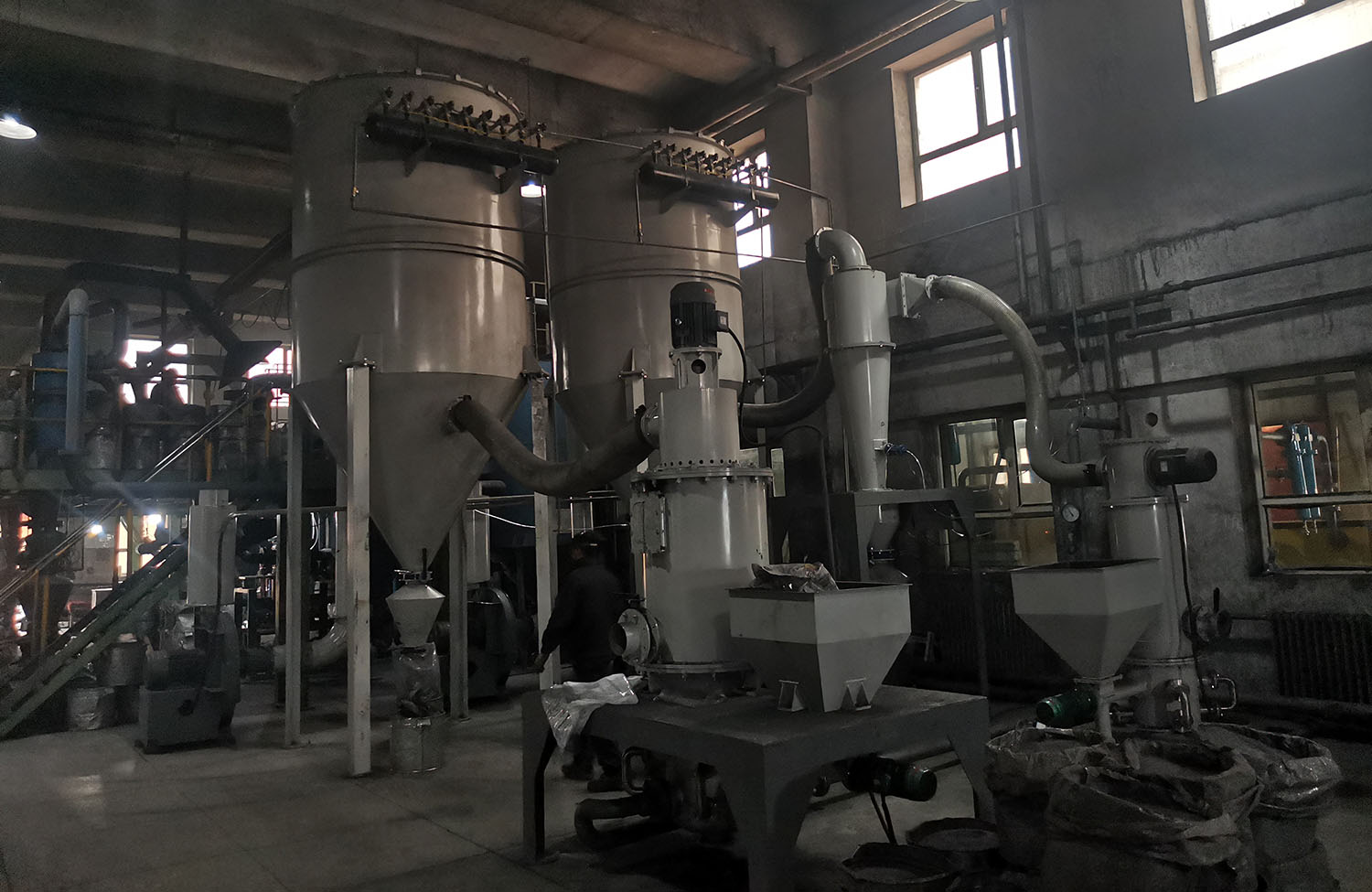

Superfine Jet Mill ProjectA verified Heilongjiang project processed 60 mesh boron carbide to D50 2.5 μm at a reported capacity of 15 kg/h using a superfine jet mill.
The project reduced 60 mesh boron carbide to a reported D50 2.5 μm at 15 kg/h.
For a comparable material, the test should evaluate achievable ultrafine size, particle-size stability, liner and nozzle wear, contamination and collection efficiency.
The reported values document one completed reference. A new line should be selected from representative material testing because hardness, shape, purity and feed condition can change the result.
Review feed size, moisture, hardness, bulk density, particle shape and acceptable contamination limits.
Verify the achievable particle size, capacity trend, product recovery and wear behavior.
Use the test result to select the mill size, classifier settings, contact materials and collection arrangement.
A comparable boron carbide project can be engineered around a superfine jet mill with wear-aware contact materials and high-efficiency collection.
These values come from the authorized project record and describe this reference only. They are not a universal performance guarantee.
A new material should be tested before model selection because feed condition, operating settings, purity requirements and collection efficiency all affect capacity and particle size.

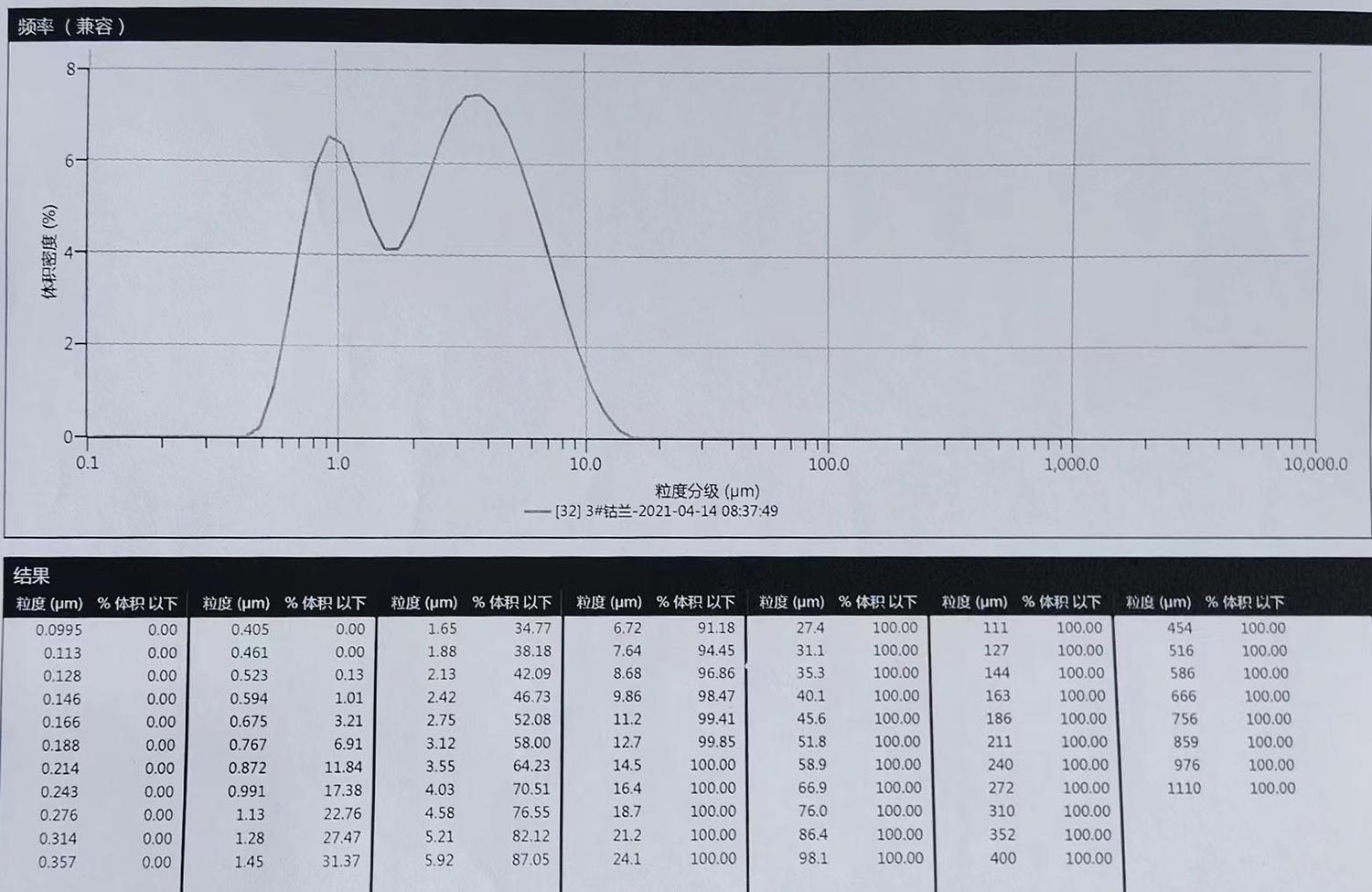

The original report is displayed as supplied. No replacement curve or reconstructed particle-size distribution has been created.
Review Mills Powder jet mill models and process options for dry fine grinding of hard and high-value powder materials.
Send the feed, target particle size and purity requirement for a material-specific test and equipment review.
